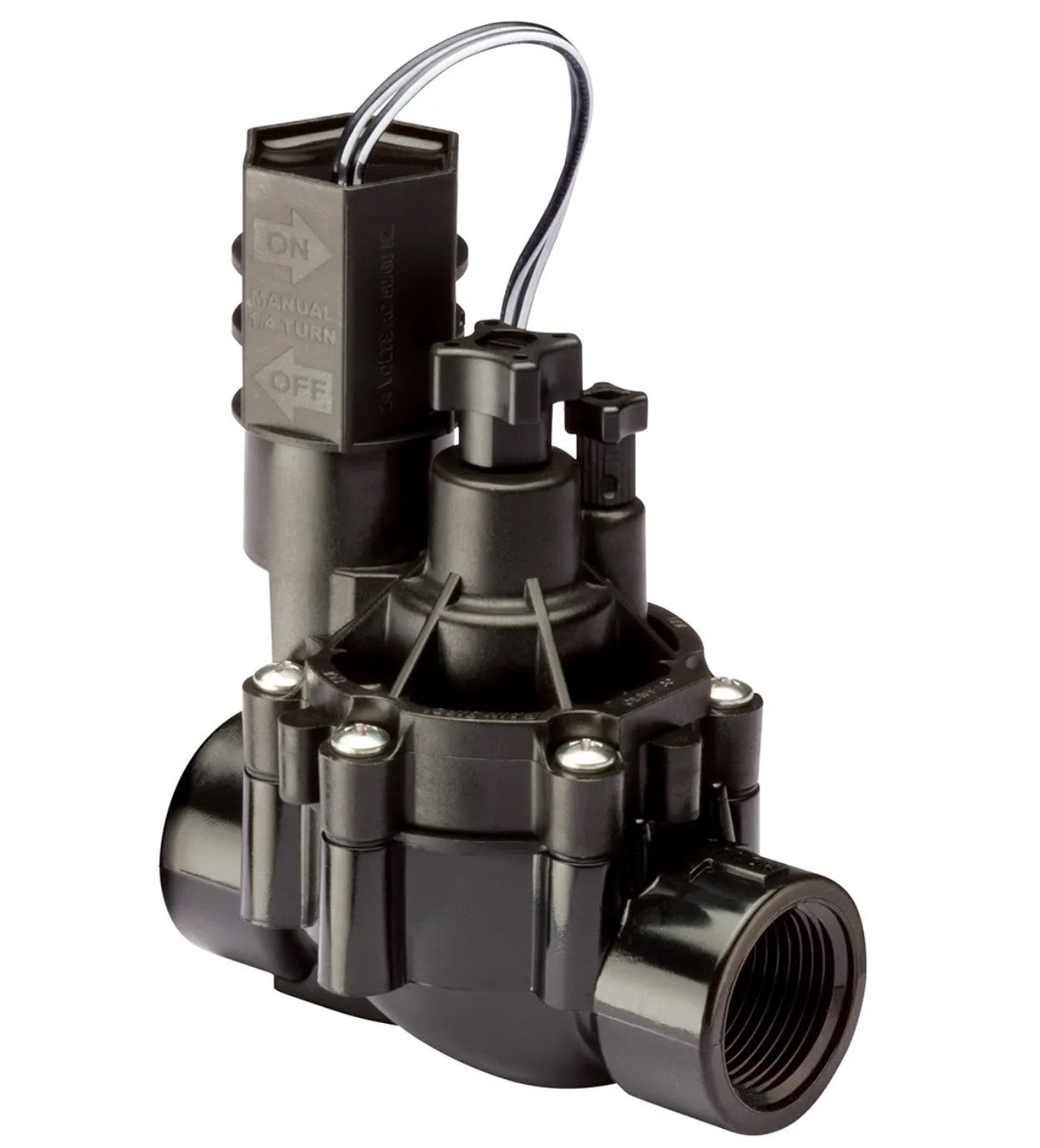

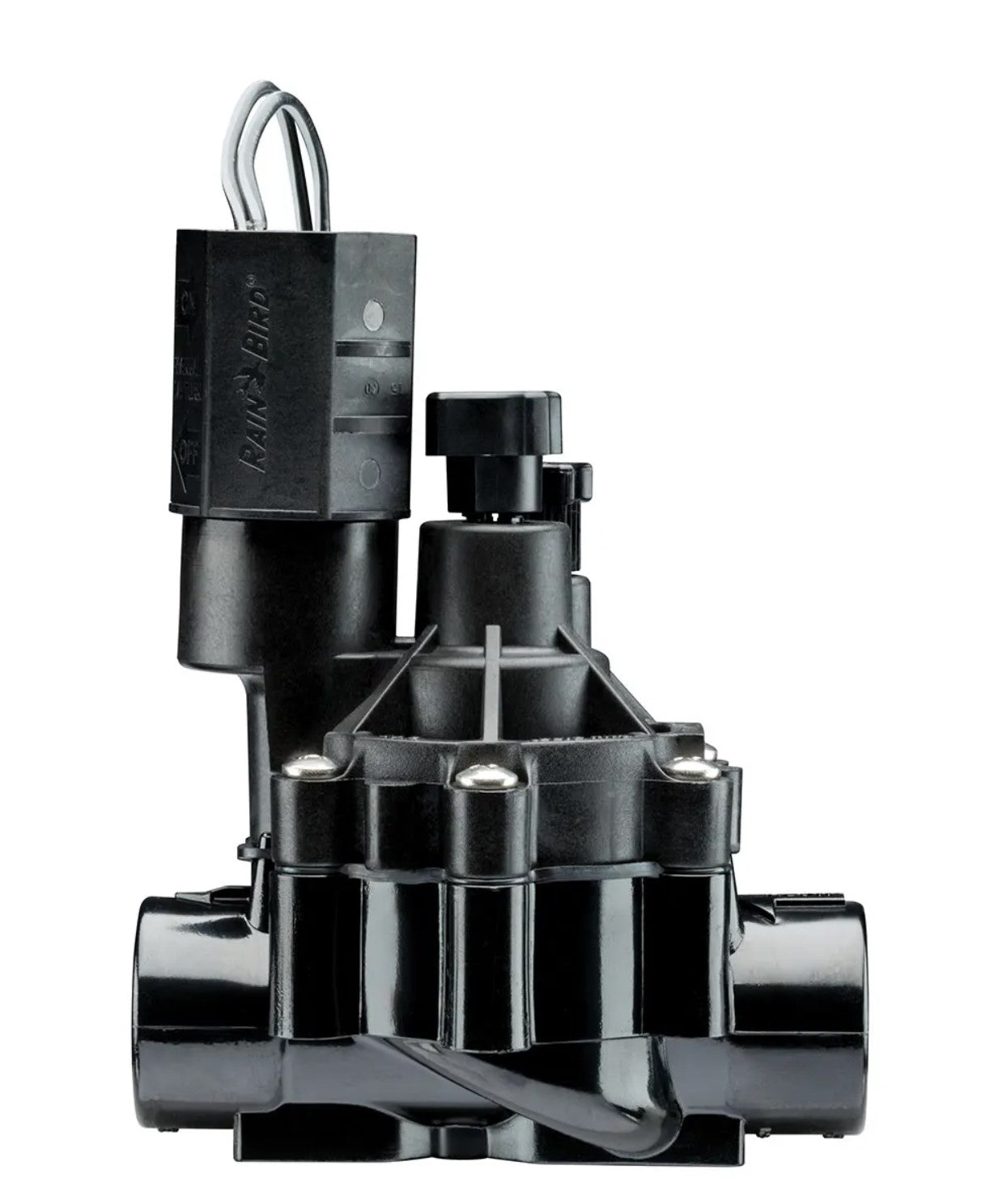

CPF075 – 3/4 in. FPT Inline Sprinkler Valve with Flow Control

• Easy To Install With 3/4 In. Male Threaded Pipe adapters
• Directional Flow Arrows Ensure Proper Valve Installation.
• Reverse Flow Design To Allow The Valve To Fail Closed To Save Water.
• Flow Control Mechanism Is Used To Reduce The Flow Of Water To Stop
• Wasteful Fogging And Misting At The Sprinkler Nozzles And For Manual Shut-Off.
• Use The Manual External Bleed Screw To Flush Dirt And Debris.
• Can Operate Electrically With Any 24 Volt Timer Or Manaully By Turning
• The Solenoid 1/4 Turn Counter-Clockwise.
• Proven Reliability with Heavy Duty Construction For Long Lasting Operation.
• Used in Residential and Light Commercial Applications.

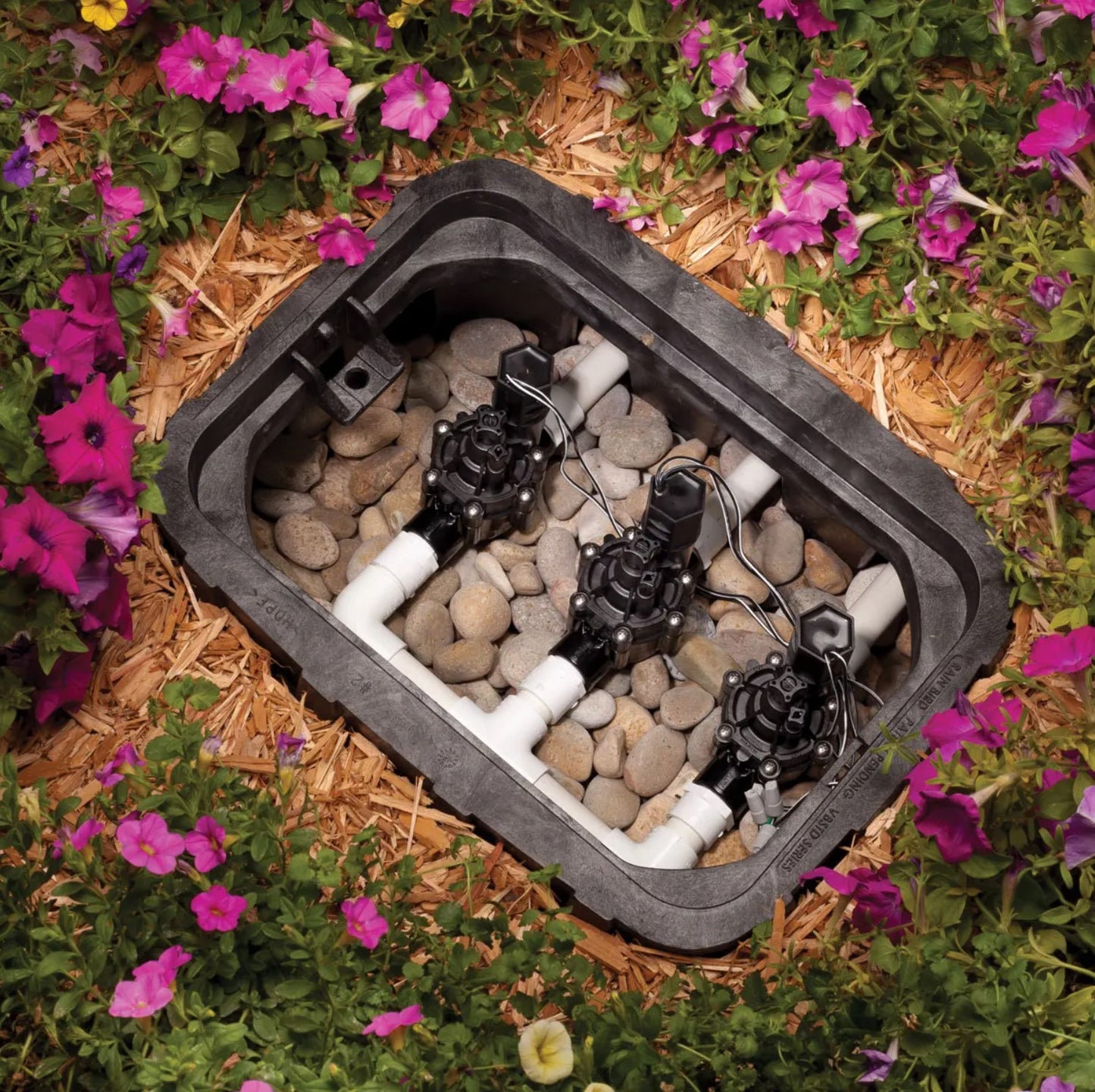

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 3/4 in. female threaded inlet and outlet.

It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high.

A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5) as well as Drip zones when properly installed together with a pressure regulator and filter.

Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.
